Thomas Blanchard & the Patent

Behind X3,131 is a man whose whole career was a sequence of “how do I make this thing automatically instead of by hand” problems, each one solved and each one, characteristically, difficult to get paid for. Understanding Thomas Blanchard — the tack machine, the barrel lathe, the patent itself, and the extraordinary legal fight to keep the patent alive — explains why the gunstock lathe exists, why it landed at Springfield Armory, and why it made its inventor famous but not, by his own account, adequately rich. This volume walks that arc.

2.1 Sutton, Millbury, and a Boy Who Mechanized Things

Blanchard was born June 24, 1788, in Sutton, Massachusetts, and died April 16, 1864, in Springfield.¹ The origin stories are the usual New-England-prodigy kind, but at least one is well-attested across sources: at thirteen he built an apple-paring machine.²³ He worked alongside his brother making tacks by hand — tedious, repetitive piecework — which set up his first real invention.

2.2 The Tack Machine

Blanchard’s first significant machine mechanized tack-making, cutting and heading tacks in one automatic operation at a rate secondary sources put at somewhere between 200 and 500 per minute — the sources conflict on the exact figure, and this series does not pick one.²⁴ He reportedly sold the manufacturing rights for $5,000 (a figure one source dates to 1812).²

The date of the tack patent is itself muddled and worth flagging honestly. Some accounts say “made and patented in 1806.” But the restored-patent record lists a tack-and-brad patent as X0003010, dated October 3, 1817 — a later date than the 1806 claim.⁵ These may be an original (lost) 1806 patent and a follow-on 1817 one, or the same invention mis-dated across the literature. The research behind this series could not reconcile the 1806-versus-1817 dates against a single authoritative source; both appear in reputable-looking secondary material. The safe statement: Blanchard’s tack machine dates to the early 1800s-to-1817 window, and a restored X-patent for it survives as X0003010 (1817).

2.3 The Gun-Barrel Lathe

The tack money and reputation brought Blanchard to Asa Waters, a Millbury, Massachusetts contract musket maker. Waters hired him to build a lathe that could turn gun barrels to a uniform profile — including the tricky octagonal breech section, which Blanchard handled by shifting the lathe into a vibratory/cam motion as the cutter approached the breech, so the tool traced a polygonal rather than circular path.¹⁶ This is the conceptual seed of the whole idea: a cutter whose radial motion is driven by a mechanism rather than held fixed. The barrel work at Waters’ factory is what put Blanchard in front of the Springfield Armory, and it is a short step from “make the round-then-octagonal barrel automatically” to “make the wildly irregular stock automatically.”

2.4 Patent X3,131 — “Turning Irregular Forms”

The gunstock copying lathe was patented September 6, 1819, under the title “Turning Irregular Forms” (also recorded as “Machine for turning gun stocks”), and carries the designation X3,131 (written variously as X3131 or 3,131X).⁷¹

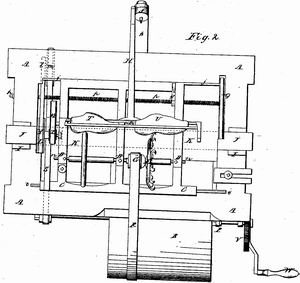

That “X” is a piece of patent history worth knowing. Nearly every U.S. patent issued before the catastrophic Patent Office fire of December 15, 1836 was destroyed — roughly 10,000 patents, of which only about 2,800 were ever reconstructed from inventors’ and applicants’ personal copies and re-issued with an “X” prefix. Blanchard’s is one of these restored X-patents; two of his others survive the same way (X0002080, “Horizontal shearing machine,” May 4, 1813, and the tack patent X0003010).⁷⁵ The primary catalog record today is on DATAMP, which lists the inventor as “Thomas Blanchard of Millbury, MA,” assigns USPTO class 142/15 (woodworking machines), and hosts the two surviving drawing-sheet scans reproduced in this series.⁷

DATAMP also records that the patent was “withdrawn and reissued January 20, 1820, by act of Congress” — a procedural correction within months of the original grant, separate from the later term-extension fights.⁷

A note on the build date. The patent is solidly dated 1819, but several respectable sources describe the lathe as invented in 1818 or “completed” in 1822, and the surviving physical machine at Springfield is catalogued as 1822. The best reconstruction, which this series adopts: conceived and prototyped around 1818, patented September 6, 1819, and a refined/production example (the survivor) built or installed circa 1822. The “1822” you see attached to the machine refers to the surviving artifact, not the patent. This is flagged as not fully reconciled.²⁶⁸

2.5 The Fight to Extend

The standard patent term then was 14 years, so X3,131 would have expired around 1833. It did not — Blanchard secured congressional extensions, and the exact count is one of the messier facts in his story.

• DATAMP states plainly that the patent was “extended by Congress in 1834 and again in 1848.”⁷
• A private act, “An Act to renew the patent of Thomas Blanchard,” is reported for June 30, 1834 (the 1834 extension is well-attested).⁹
• A separate, frequently-repeated account (Iles, 1912) describes an 1840 demonstration in which Blanchard brought the lathe — by then adapted to carve marble and wood busts — before Congress in the Capitol Rotunda, impressing Henry Clay, John C. Calhoun, and Daniel Webster; with Webster’s advocacy Congress granted a further term “on the ground of the high utility and singular originality of his invention, and in view of the inadequate return he had derived from it.”¹⁰

Whether the 1840 demonstration and the 1848 extension are the same event described differently, or two genuinely separate acts, is not resolved by the available sources, and this series does not pretend otherwise. The oft-repeated summary of “42 years total monopoly” (which would run roughly 1819-1861) could not be verified against a primary legal citation. The honest statement is: at least two, and possibly three, congressional extensions — 1834 firmly, and 1840 or 1848 (or both) — flagged as inconsistently reported. The single best modern source on exactly this question is Carolyn Cooper’s Shaping Invention, a monograph specifically about Blanchard’s patent management; the research could not get past a bot-check to fetch it, and it is flagged as the thing to read for a definitive extension timeline.¹¹

The motive for the extensions is consistent across sources: rampant piracy. By the 1840s fight, one account claims “over fifty unauthorized machines operated across the country, including Canada,” and Blanchard argued — and Congress accepted — that he had not received adequate return despite the invention’s enormous utility.¹⁰

2.6 Springfield Armory and the Nine-Cent Royalty

Blanchard did not simply hand the machine to the government. The arrangement, per Iles and corroborating summaries, was a royalty: the armories at Springfield and Harpers Ferry paid him nine cents (9¢) for each gunstock turned on his lathes.¹⁰ This is the clearest, most specific compensation figure in the record, and it is consistent across the sources that mention payment at all. It is also why the extension petitions leaned so hard on “inadequate return”: nine cents a stock was real money at volume, but set against the invention’s impact it read, to Congress, as thin.

Adoption was not uniform. At Harpers Ferry Armory, the lathe — developed under contract for Springfield — was, per Merritt Roe Smith, “resisted mightily” by craft-trained artisans who saw it as a threat to hand methods and their authority. Smith contrasts this with John H. Hall, who built his own custom machinery rather than adopt Blanchard’s, and notes that technical information between the two armories flowed essentially one-directionally, north to south.¹² That resistance is a major theme of Volume 6.

2.7 Bibliography

Footnotes

1. Wikipedia, “Thomas Blanchard (inventor).” https://en.wikipedia.org/wiki/Thomas_Blanchard_(inventor) ↩ ↩² ↩³

2. American Precision Museum, “Thomas Blanchard.” https://americanprecision.org/profile/thomas-blanchard/ ↩ ↩² ↩³ ↩⁴

3. National Inventors Hall of Fame, “Thomas Blanchard.” https://www.invent.org/inductees/thomas-blanchard ↩

4. University of Houston, “Engines of Our Ingenuity,” episode 2045. https://engines.egr.uh.edu/episode/2045 ↩

5. DATAMP records for X0002080 (“Horizontal shearing machine,” May 4, 1813) and X0003010 (“Machine for tacks and brads,” Oct 3, 1817). ↩ ↩²

6. Orchid Advisors, “Thomas Blanchard - Gunstock Duplicating Lathe Inventor.” https://orchidadvisors.com/thomas-blanchard-gunstock-duplicating-lathe-inventor/ ↩ ↩²

7. DATAMP, “US Patent: X3,131 - Turning irregular forms.” https://www.datamp.org/patents/displayPatent.php?pn=X3131&id=5435 ↩ ↩² ↩³ ↩⁴ ↩⁵

8. Google Arts & Culture, “Blanchard Lathe” (NPS Museum Management Program; item dated 1822, catalog no. SPAR 5550). https://artsandculture.google.com/asset/blanchard-lathe/GQEi8p22l3Rj-A ↩

9. U.S. Statutes at Large, Vol. 6, p. 589 (23rd Congress, Sess. I), “An Act to renew the patent of Thomas Blanchard,” June 30, 1834 — primary OCR was not cleanly readable; act reference from search synthesis. ↩

10. George Iles, Leading American Inventors (1912), reproduced at todayinsci.com — secondary, somewhat romanticized; source of the royalty and 1840-demonstration narratives. ↩ ↩² ↩³

11. Carolyn C. Cooper, Shaping Invention: Thomas Blanchard’s Machinery and Patent Management in Nineteenth-Century America — full citation unconfirmed (Project MUSE bot-walled). Flagged as the definitive source on the patent-extension timeline. ↩

12. Merritt Roe Smith, Harpers Ferry Armory and the New Technology: The Challenge of Change (Cornell University Press). ↩
